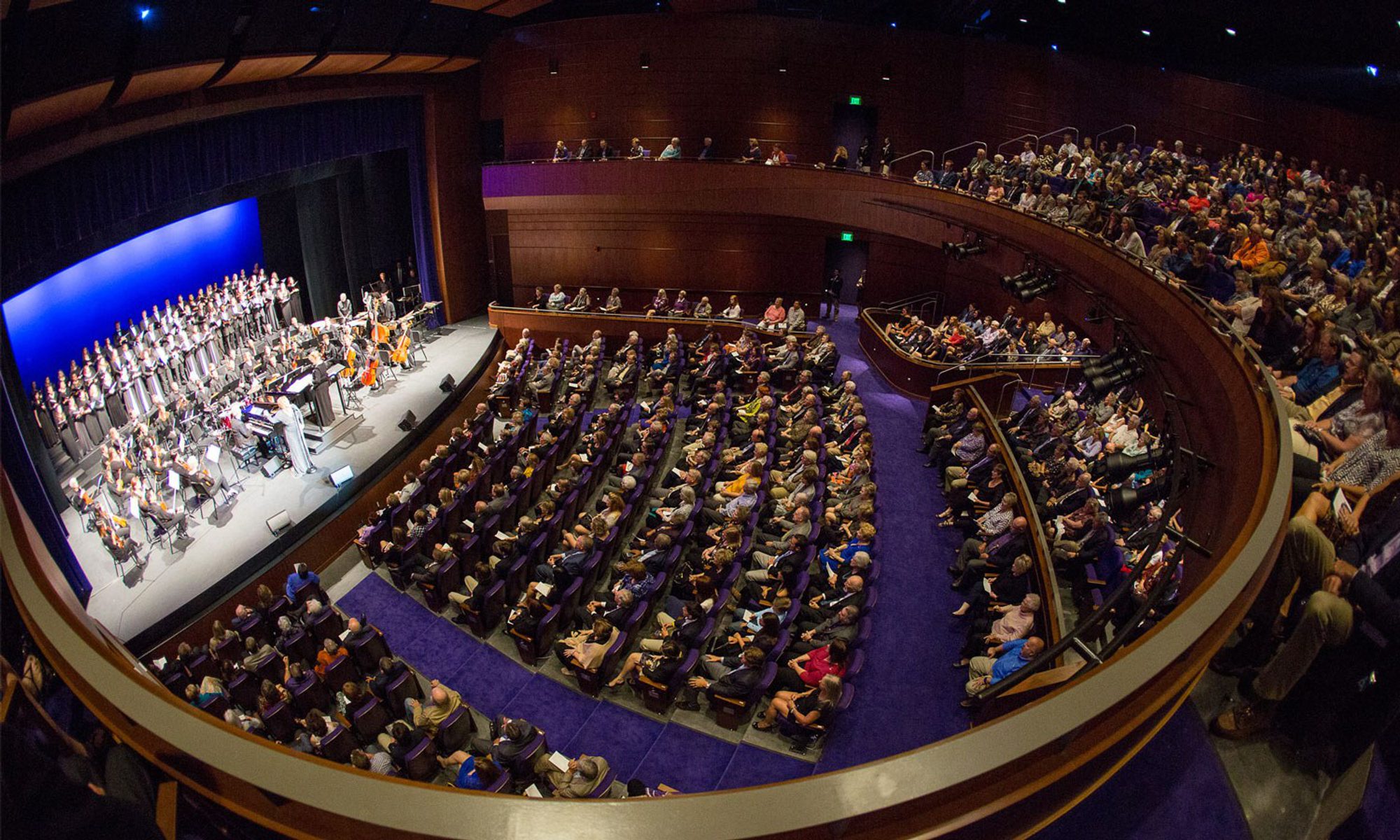

About the Performing Arts Center

• Orchestra pit: 23
• Orchestra: 184
• Parterre: 130
• Parterre Boxes: 20
• Balcony: 149
• Balcony Boxes: 18
• Total Capacity: 524

• Proscenium Opening: 48’
• Plaster line to DS edge:
• Stage edge to DS edge of orchestra lift:
• Centerline to SL fly rail: 38’ – 6”
• Centerline to SR wall: 41’ – 8”

• 38 Linesets
• Plaster line to first line set: 0’-6”
• Plaster line to last line set: 33’-0”
• Grid height 49’-9 1/2”
• Batten trims: 4’ low / 40’ high
• Batten length: 56’-0”
• Lineset Load: 1500 lbs. // Orchestra Shell Load: 1800 lbs

• 40’-4” long x 11’-6” wide at the peak of the arch
• Pit extends under stage 4’-4”
• Access by SL and SR stairs
• Adjustable depth via Spiralift system
• Approximate capacity – 40 musicians
• Does not move during performances

• 3 ceiling pieces with lighting located on Lines 8, 20, 31
• 9 - 25’ tall towers stored on SL

• ETC Ion with 2x20 Fader Wing
• DMX Lines located DSL, DSR, and at the FOH Mix position
• ETC Net3 networking and gateways located throughout the space
• ETC Sensor3 Dimmers – 288 total
• See Baugh Performance Hall rep plot and paperwork for details
• Followspots 2 – Canto 1200 MSR - Located in the center of the rear catwalk
• Onstage Power
  • 200amp 120/208 volt, 5- wire 3 Ø USR
  • 400amp 120/208 volt, 5-wire 3 Ø USL

• FOH Console: Yamaha QL5
• FOH Mix Position: Crossover aisle in the house
• Main PA Speakers
  • Renkus Heinz STX 4/44 (4)
  • Renkus Heinz STX 2M/64 (2)
  • Renkus Heinz PNX 212 Subwoofer
• Front Fill: Renkus Heinz CFX41
• Amplifiers and Processing: QSC
• Monitor Speakers*: QSC K-8
• Wiring: Dante & Aviom Digital Network
• Wireless Inventory*: 4 x SM58 ULX-D handhelds, 20x Countryman B6 with Shure ULX-D bodypacks
• Playback: Qlab v3
• Intercom: Full Clear-Com system with 4 wireless units
• Backstage Audio/Video Show feed distributed to each dressing room
• Shared inventory with other venue. Availability contingent upon event scheduling.

• Stage Level
• 2 trucks - Dock 4' high
• Loading Doors - 10' x 16'
• Dock to Stage approximately 40'

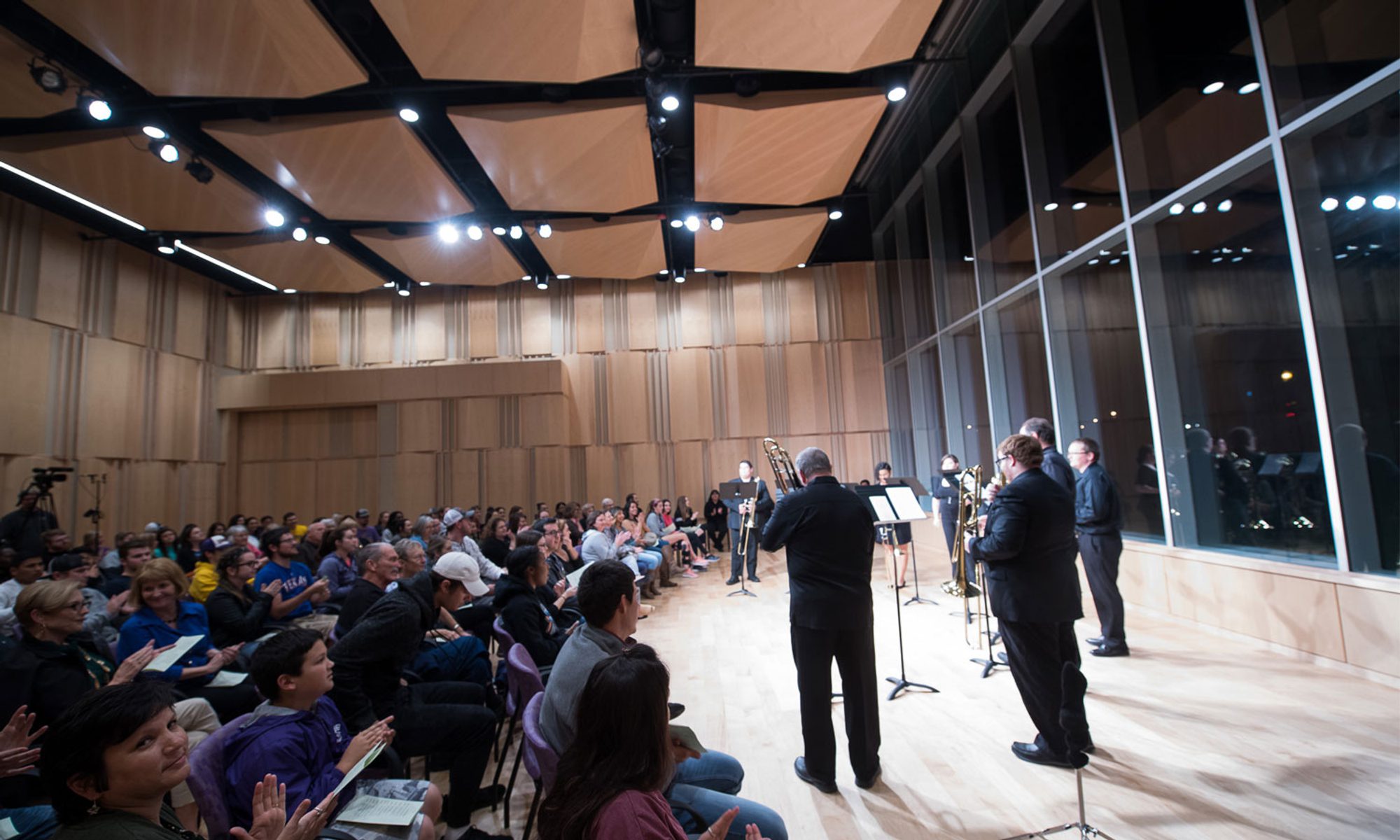

• Variable based on how the space is setup
• Maximum – 170 seats on the floor
• 30 – 3’ x 6’ risers available in 1’, 2’, 3’, 4’, & 5’ heights available for seating area.

• Adaptable based on seating arrangements and production needs.

• Console: ETC Element
• ETC Dimmer Bars – 48 dimmers
• 24 ETC Source 4 PARnels
• 4 Altman Spectra Cyc 100 LED Wash Fixtures

• Console: Yamaha QL1
• Speakers: QSC K-8 speakers on stands with portable subwoofer
• Shared inventory with other venue. Availability contingent upon event scheduling.

The Paul & Jane Meyer Rehearsal Hall serves as both a classroom and a rehearsal space for theatrical and musical productions. The room’s dimensions mirror the dimensions of the stage in the nearby performance hall so that students are able to practice for upcoming productions there as easily as on the stage. Vending machines are located near the Paul & Jane Meyer Rehearsal Hall.

Dressing rooms are reserved for the most current production and for any classes that may be taking place in them. There are:

• 2 – Headliner / Conductor rooms, each with a restroom and a shower
• 2 – Chorus sized rooms with 10 stations, each with two sinks

The Scene Shop plays a critical role in the production process of any performance. Starting with set design, students and staff move into the fabrication and construction phase where the design concepts become reality. Equipped with top-of-the line features, the scene shop offers a unique and thorough experience to the students, faculty, or staff working behind the scenes.

The Sue & Frank Mayborn Performing Arts Center features a recording studio which provides the perfect environment in which to learn and fine-tune skills such as music producing, recording (both in studio and live settings), editing, mixing, mastering, dubbing, engineering, and more. Students have access to an array of state-of-the-art equipment in a control room setting.

Concert Choir

The premiere choral ensemble at UMHB, Concert Choir is open to all students by audition. Current membership represents a variety of disciplines including Music, Christian Studies, Nursing, Business, Sociology and Computer Science.

University Singers

University Singers is a large choir open to singers of all levels, performing both contemporary and traditional literature.

One Voice

The pride and joy of UMHB, One Voice is an auditioned choral ensemble that represents UMHB in churches, schools and civic functions throughout the state and nation.

Wind Ensemble is the premier instrumental ensemble open to any UMHB student by audition, regardless of major. Repertoire is selected to expose performers to a wide range of musical languages, as well as a variety of technical, intellectual, and aesthetic challenges. The UMHB Wind Ensemble performs 3-4 concerts each semester.

Jazz Ensemble plays a widely varied repertoire including styles of music from Duke Ellington to the contemporary artists of today. A strong emphasis is placed on sight-reading. The group is open to all university students, regardless of major. The ensemble performs 3-4 times per year, including festivals and community concerts.

The UMHB OPERA is designed to train, develop and prepare for a professional career in opera. The UMHB OPERA produces one fully staged opera per academic year. This annual production includes a professional orchestra, costumes, lighting, sets and props.

The UMHB Musical Theatre is very rigorous. The annual production is mounted in the fall and requires a great deal of preparatory work for the student performer. This annual production includes a professional orchestra, costumes, lighting, sets and props. It is designed to give an opportunity to perform Musical Theatre to anyone on campus. The UMHB Musical Theatre produces one fully staged production per academic year.
